Model: BANEUR75

Interactive display:

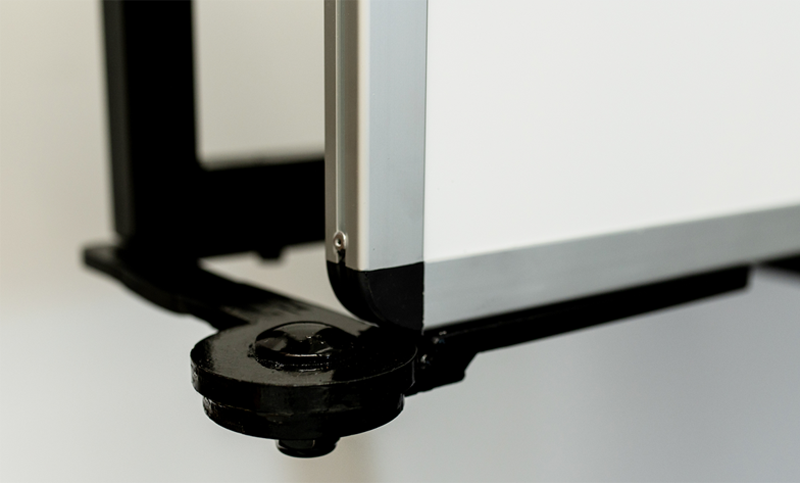

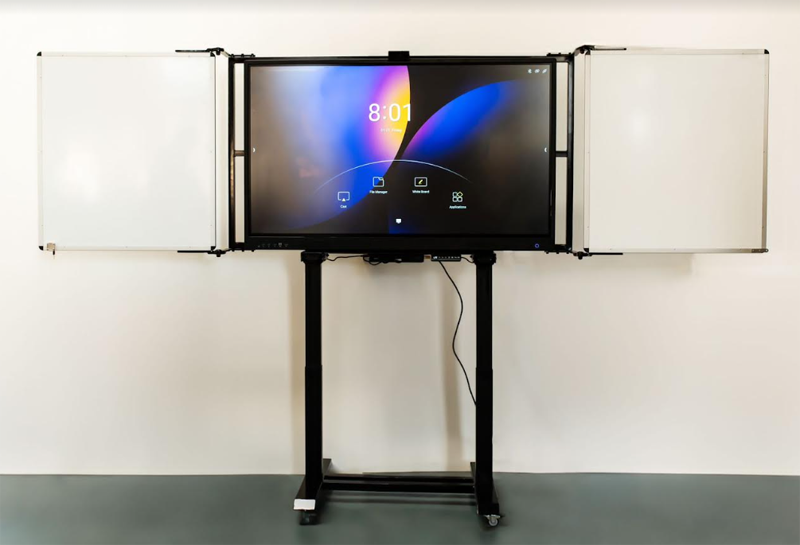

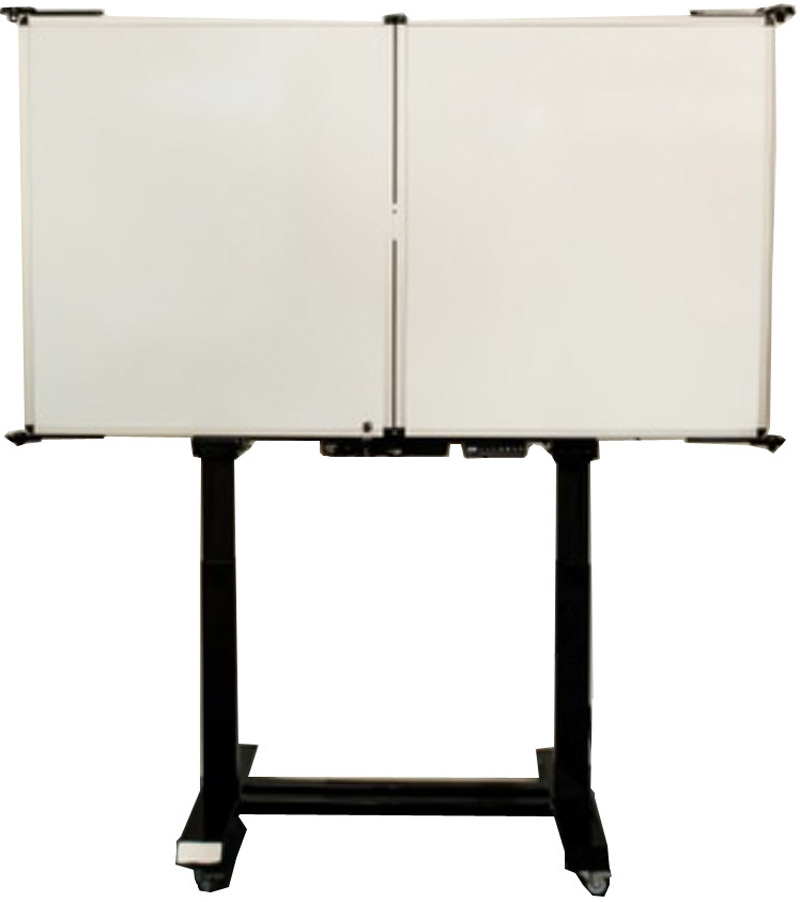

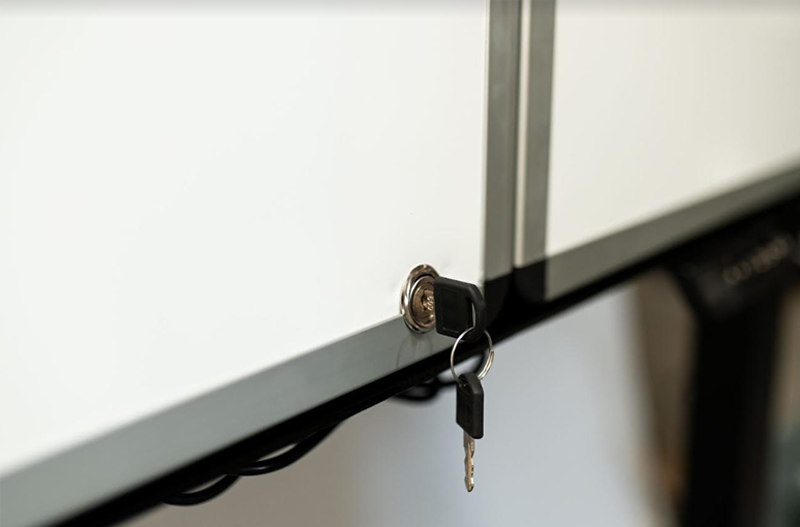

The board will have 4 classic metal-ceramic writing surfaces, framed with aluminium frames, for writing with marker. In the closed position, the hinged sides will provide protection for the interactive monitor in the middle of the board. They will be locked with a double control lock (lock with a cipher and a master key). Access to the Android and OPS area, as well as to the connectivity area (other than the front one), will be secured and will be locked with double control lock (4-digit minimum code and master key). The 4 classic writing surfaces (marker) will be magnetic, 1200mm high and 1000mm wide. In the version with closed sides, the board will be maximum 2000 mm long. In the open version - it will be maximum 4000 mm (format 1000+2000 (monitor) +1000mm).

Diagonal: 75", 178 degree viewing angle

Display Type: Minimum 4k UHD, Anti-Glare, 400 cd/m2 brightness, Touchscreen in minimum 20 dots, 2 interactive stylus included;

Features:

Browser, wireless presentation from any device, annotated screenshots

Stylus with 2 heads, thick and thin writing, automatic writing thickness adjustment;

Screen sharing function

Annotation functions

Hand wiping

Operating system for the interactive display:

Pre-installed operating system, not more than one version behind the latest release, with technical support provided by the manufacturer/distributor for a period of 4 years, ensuring compatibility with operating systems used in educational establishments

Software:

Software that will allow the screen to be divided into 4 working parts;

Interactive educational presentation software for Android;

Educational software in multi language with auxiliary didactic resources for the multi secondary and high school curricula: multi language and literature, History, Geography, Biology, Physics, Chemistry, Foreign languages, Mathematics, Technological Education included.

Processor speed: min. 2 x 800MHz

RAM Memory: min. 16 GB

ROM: min. 128 GB

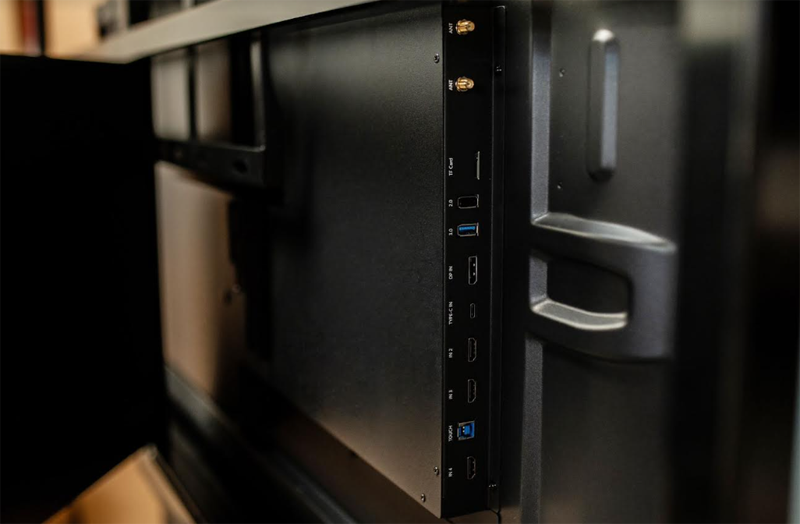

Interfaces:

HDMI In x 4

HDMI Out x 1

USB:

Public USB3.0 x 1

Public USB2.0 x 1

Android UB3.0 x 1

Touch out USB 3.0 x 1

RS232 x 1

RJ-45 x 2 (in/out,10M/100M /1000M)

Bluetooth 5.0 x 1

WIFI - WIFI 6

SPDIF OUT x 1

Micro-SD card x 1

MIC IN x 1

DP in x 1

TYPE C in x 1

TYPE C out x 1(65W)

Webcam:

Min. 13 MP modular camera, recessed into the top side of the interactive monitor, equipped with 8 microphones and a 120-degree viewing angle

Educational software in multi language

Multidisciplinary interactive software:

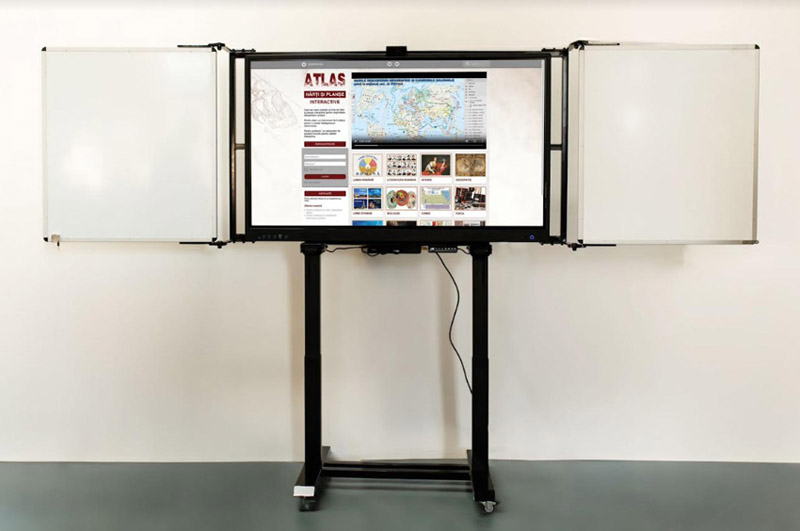

Portal of interactive curricular content (maps, charts, other materials) specific to pre-university education. The materials are grouped by educational level (primary, secondary, high school) and each level is structured by interactive subjects.

Compatible with all operating systems - Windows, MacOS, Android, Linux, Tizen

Working tools:

Zoom in / zoom out / move; - Write / draw / erase / delete all;

Content interactivity:

Separation into a minimum of 8 layers - a maximum of 50 layers, gradually representing a theme from simple to composite by adding graphics and content elements.

To assess knowledge, users can access a separate layer (e.g. moving map, map to fill in information, writing, drawing, etc.).

Content of the secondary school cycle:

History (minimum 80 titles: cartoons, plates, interactive lessons, etc. for all eras at multi language and world history).

Geography (minimum 50 titles: maps, plates, interactive lessons, etc. separated by compartments: Geography of multi language, Geography of continents (physical maps, economic, political).

Multi Language and local language (minimum 40 interactive titles in Morphology, Syntax, Lexicon and Phonetics).

Multi Language and local language Literature (at least 40 interactive titles: theory of analysis of works literary works, portraits, biographies, literary works, etc.)

Foreign languages (English (minimum 15 titles), French (minimum 15 titles), English (minimum 15 titles)

German (minimum 15 titles).

Biology (minimum 40 interactive titles in Anatomy, Zoology, Botany).

Chemistry (minimum 30 titles in Organic Chemistry and Inorganic Chemistry).

Physics (minimum of 30 titles, by subject: Mechanics, Thermodynamics, Electromagnetism, Optics, etc.).

Mathematics (minimum 40 titles in Algebra and Geometry).

Arts (minimum 30 titles for art techniques, genres, art history, etc.)

Technological Education (minimum 30 titles for the curriculum areas culinary arts, woodwork, metalwork, ceramics, etc.)

License: 4 years included

OPS – incorporated

Processor:

CPU Benchmark score at least 8300 according to CPU Benchmark Rating (https://www.cpubenchmark.net/ ), with minimum 4 cores

Memory: Min. DDR4, 8 Gb, 2666MHz

Storage: Min. 128 GB, SSD

Graphic processor: Intel® HD Graphics

Interfaces:

Wireless: 1 x PCI-E, Realtek 8821CE WIFI/BT

Realtek Gigabit Ethernet

4 x USB 3.0 Type A

2 x USB 2.0 Type A

1 x USB Type C

1 x RJ45 10/100/1000M

1 x HDMI 1.4 out, Max.4K/30Hz

1 x DP 1.2 out，Max.4K/60Hz

1 x 3.5mm Line out

1 x 3.5mm Mic in

2 x WIFI/BT ANT

1 x Power button

1 x Recover button

1 x JAE 80-pin or equivalent

Power input: 19v DC IN

Operating system for the OPS:

Windows 11 preinstalled

Power supply: AC 220-240V, 50-60Hz

Electric stand:

Electrically adjustable height, the support structure of the interactive display and the sides is made of rectangular profiles, joined by welding executed robotically in argon, electrostatically painted and polymerized. The 2 legs are made of rectangular profiles , which are telescopically joined together.

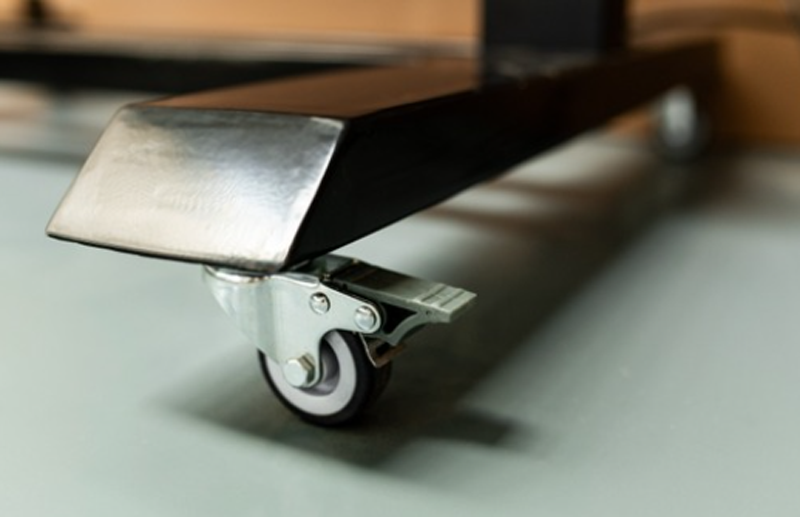

The electrically operated column makes it easy to adjust the display to the right height. Thanks to the silent electric motor, the display height can be adjusted by one person via remote control, the sturdy column base can easily lift a monitor and its sides, with a maximum supported weight of 135 kg, the whole mechanism can be moved thanks to the 4 wheels are equipped with a safety brake so that the stand stays in position, when in standby mode, the stand consumes no more than 0. 5 W, making it an energy efficient device, column height adjustment range: 650-1200mm (plus the height of the interactive monitor), lifting/lowering speed: min 30 mm/s, 220V power supply: Yes;
The stand allows the installation of 75" diagonal interactive monitors in the centre.

Other:

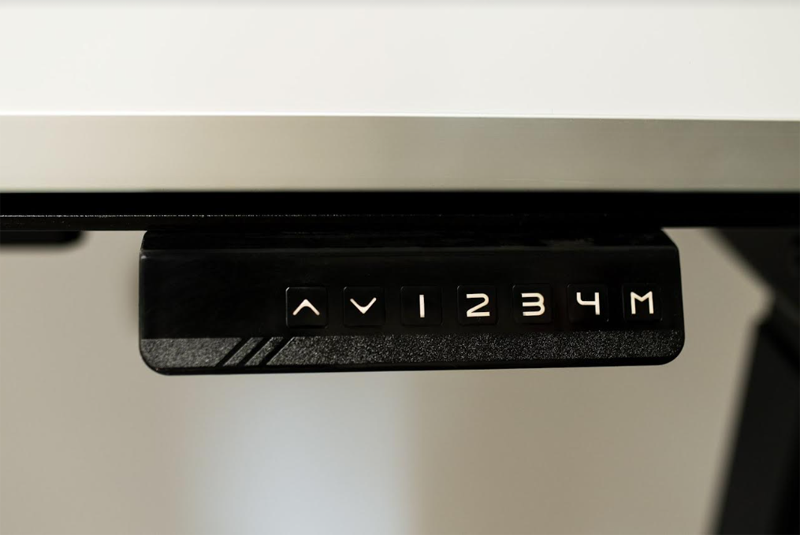

Remote control for the electric stand

Remote control for the interactive display

USB cable min. 2 m

Whiteboard Markers included: 4 physically separate whiteboard markers (4 colours).

Interactive Stylus with 2 ends writing thick and thin, automatic detection of writing thickness

Security:

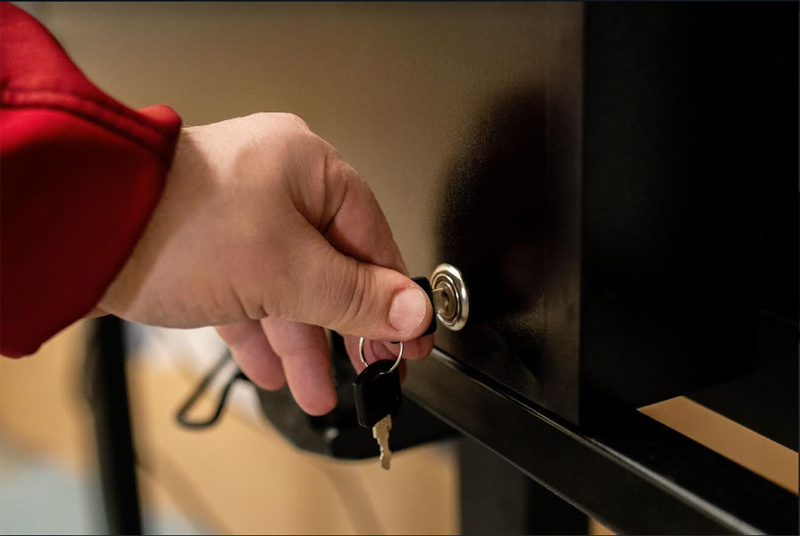

Access to the Android and OPS area, as well as to the connection area (other than the front one) will be locked with a double control lock (lock with a cipher and a master key)

Warranty: 36 months

Documentation: Detailed manual/brochure in English/other related language (electronic version/on paper).

1. User manuals (in related language and/or English) will be submitted on paper and electronically;

2. Batteries will be included in all battery-operated devices and/or equipment, if this one required;

3. Charger/adapters will be included for all chargeable/rechargeable devices;

4. Electricity voltage and electricity plugs and/or adapters will comply with related standards;

6. All goods and materials  incorporated in the goods will be new, unused, and of the most recent or current models, and that they will incorporate all recent improvements in design and materials.

7. All Goods with the proposed technical parameters previously were manufactured and released on the market.
